Used Generator AC Steam Turbine Condensing
Have one to sell?
ConditionUsed
1 available

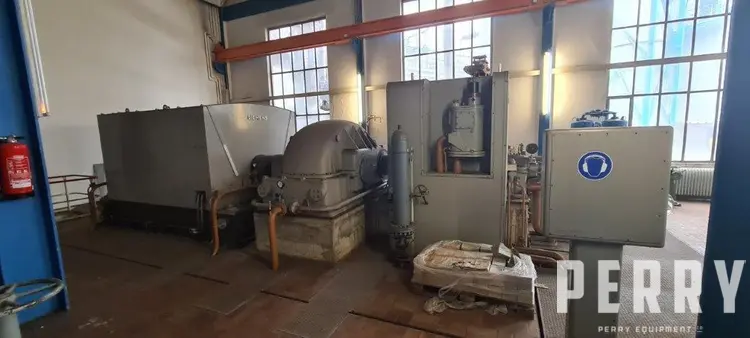

Used Siemens Turbogenerator Set
Turbine:
Year prod.: 1977
Unit no: W5514
turbine No.: T5514
type and size: G 500-2
rated power: 9800 kW
Rated speed: 6500 min-1
fresh steam pressure: 28.9/55.9 bar
fresh steam temperature: 390/500 deg C
back pressure: 3.34±0.5 bar
Gearbox: 1977
device no: 5514/1061
power: 9800 kW
rpm: 6500/1500 min-1
Generator: 1977
Type: 1 DU 7750-7 FE 32-Z
No.: D75 251 006 01
Voltage: 10500 V
current: 674 A
Power: 12250 kVA
cosϕ: 0.8
rpm: 1500 min-1
