6" x 36" CDS Solid Belt Puller

Description

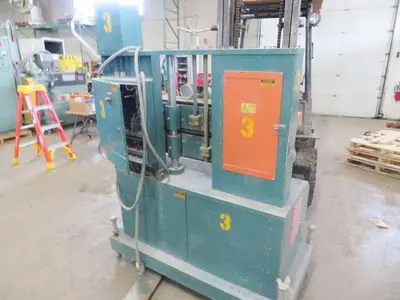

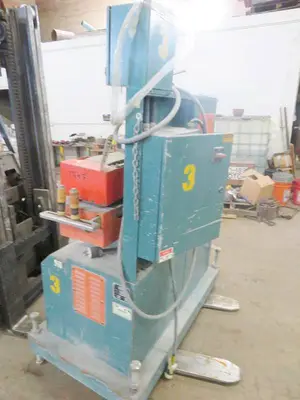

Used CDS Belt Puller. Model CBH 36-6, serial #011106. Has nominal 6" wide belts with 36" of belt contact length. Set up for right to left operation. Top and bottom belt manually height adjustable via hand wheel. Belts are powered by a 3 HP D/C motor and SCR drive. Mounted on height adjustable jacking screws. Speed range is 5 to 54 feet per minute. Digital FPM readout. Manufacturers tag reads voltage input at 575/1/60 but unit input is actually 230/1/60. There is a removable internally mounted transformer that goes from 575/1/60 to 230/1/60. Needs new belts.
