264 Gallon 316L Stainless Steel Agitated Vacuum Processor

Description

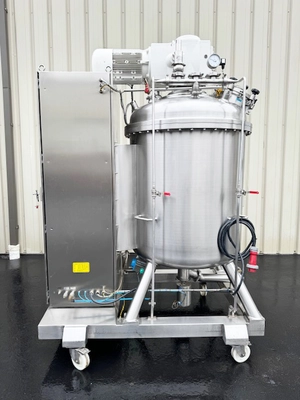

Used EKATO Unimix SRC 1000 Agitated Vacuum Processor
Manufactured by EKATO Systems GmbH, Germany
Type SRA 1000 SO vacuum processing unit
316L stainless steel
1000 liter (264 gallons) working volume
1245 liter total vessel volume
43" diameter X 62" deep
MAWP 2 bar @ 133° C (271° F)
MAEWP 1 bar @ 133° C (271° F)
MPMT 0° C @ 2 Bar
Viton seals for pressure and vacuum operation
Dome top with clamping 15.5" L X 12" W manhole

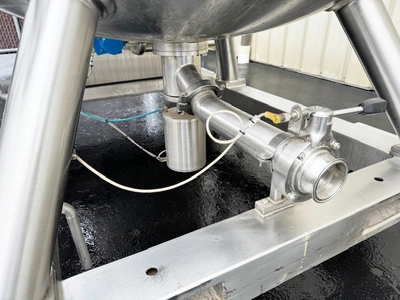

Dished bottom to 3" center-bottom outlet, flush mount discharge valve to 3" butterfly valve
EKATO PARAVISC agitator system for processing highly viscous non-newtonian and shear sensitive products
20 HP agitator drive motor, 1765 rpm
Bottom automatic CIP valve
Stainless steel electrical control panel, operator controls with E-stop
Allen Bradley MicroLogix PLC
Allen Bradley PowerFlex70 VFD for 20 HP agitator motor, 5-50 agitator rpm
Allen Bradley PanelView Plus 1500 color touch display module
Stack light indicator
Electrical 480 Volt, 3 Ph, 60 Hz, 30 A, 17 kW
CE rated
Built 2013
Order No. 83542
NB #16
Previously used for carbopol thickener mix
