89,520 Litre ZVU Strojirny, 6 Bar/FV Internal, 10 Bar/FV Jacket, 316L Stainless Steel Reactor

Description

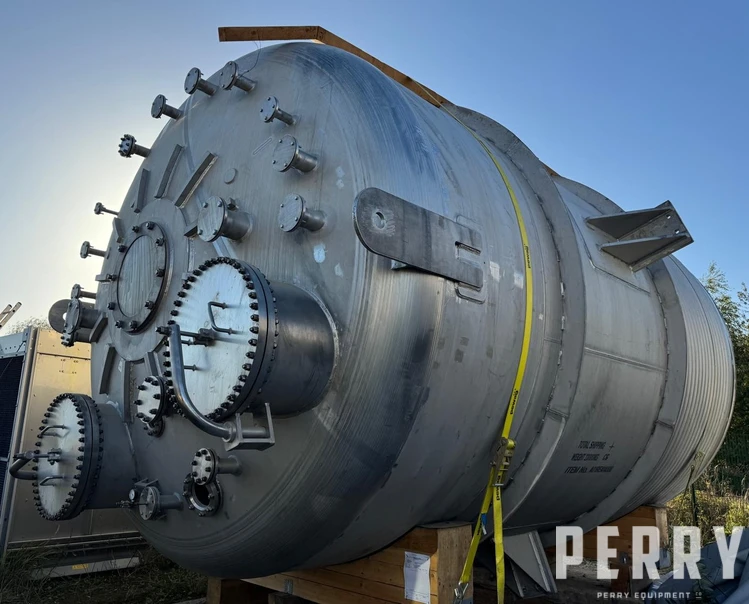

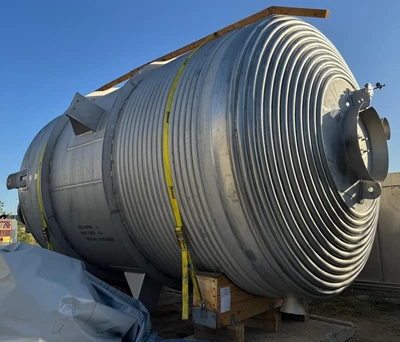

Unused ZVU Strojirny approximately 89,520 litre total capacity & 73,500 litre working capacity 316L stainless steel vertical reactor. Unit measures approximately 4,100mm internal diameter x 5,750mm straight side (tan to tan). Unit has welded dished top and bottom heads. Internal rated 6 bar/full vacuum design pressure at 170 deg.c. Has external half-pipe coil jacket on bottom half of straight side and bottom dished head rated 10 bar/full vacuum design pressure at 170 deg.c. Unit has top entry 316L stainless steel 4-blade agitator driven by ABB 350kw, 1500rpm, 3/50 motor through SPX Flow type 7000N350V gearbox with reduction ratio of 7.94/1 giving approximately 189rpm output. Reactor body is mounted on (4) 304 stainless steel side supports. Unit built in 2021 and currently stored nitrogen purge.
