11 KW Stainless Steel Hammer Mill Model BS-350

Description

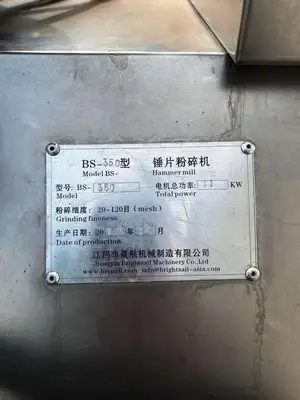

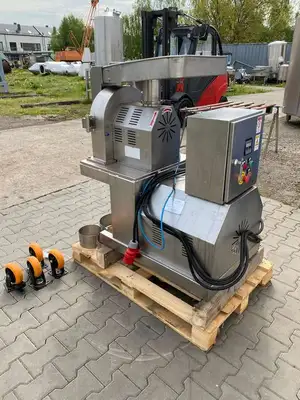

Used stainless steel hammer mill by Jiangyin Brightsail Machinery Co. Ltd. (China) model BS-350. Grinding chamber has an internal diameter of 350 mm and a depth of 110 mm and is equipped with an insert consisting of a grater for grinding the product in the upper part and a sieve in the lower part. Mill rotor has a diameter of 340 mm and a width of 85 mm. There are 2 rows of hammers on the rotor, each row has 6 hammers. In total, the mill has 12 hammers. Rotor is belt driven with an electric motor with a power of 11 kW. The product is fed to the mill from the top and received from the bottom. Machine is mounted on wheels. Mill has an electrical cabinet and spare parts.
