Paper straw production line with approximately 2500 straws/hour per line

Description

Used paper straw production lines made by Eberle in 2020 with a capacity of 227,485,440 straws/year.
Line includes the following equipment:

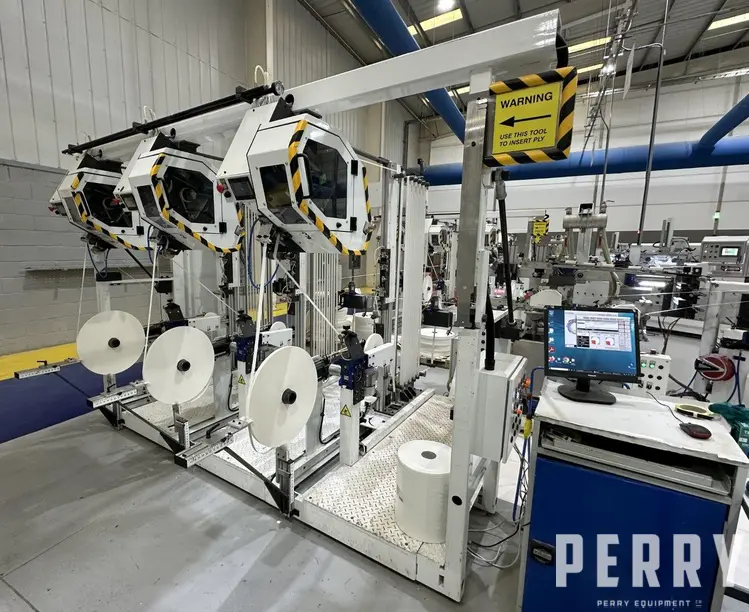

- Reel Stand. 3 plies of paper (19mm, 19.4mm, 21mm left to right) used to make a 7.3mm straw. 2 reels (bobbins) on each station.
- Glue Unit.
- Winding Section: 3 plies introduced uner tension, equal paper overlap set for mechanical strength of straw. 2x18mm drive belts instead of 1, meaning better adhesion and higher speed.
- Cutting Section: 60 cuts / minute = max 60 x 7 straws = 420 straws / minute.
- HMI Operator Interface.
- Automatic straw length measurement: Dual laser sensors set to desired straw length allow precision measurement of individual straws to 0.1mm. Automatic rejection of straws at full speed.
- Overwarapper Machine: 900 straws / minute wrapping capacity. Lightweight 23 gsm wrapping paper.
- Overwrapper Dual Printing Unit.
- Straw Packing.
