20 Gallon Unused Glass Lined Reactor, 150 psi Internal, 125 psi Jacket

Description

UNUSED Pfaudler Approximately 20 Gallon, Clamped-Top Glass Lined Reactor

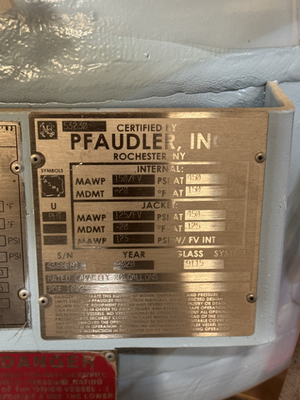

Manufacturer: Pfaudler

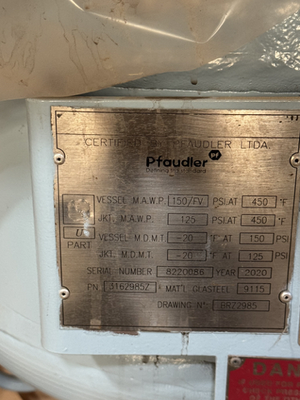

Serial: 8220086
National Board: 53230
Year: 2020
Internal: 150/FV-20 Degrees F to 450 Degrees F
Jacket: 125PSI at -20 Degrees F to 450 Degrees F
Openings: Cover with Site Glass
Top Head:
(1) 2,2/8” Drive Nozzle
(2) 2” Nozzles
(2) 1,1/2” Nozzle
Bottom Head:
(1) 2”
Top Mounted Agitator with Drive & Motor.
Agitator: Light Blue, Nucerite, 3 Blade, 16” Span Retreat Cure Impeller (RCI)
Drive: 2.5 DTWNC, 10: Ratio, Output 175 RPM
Motor: 2.5 HP, 3 PH, 60Hz, 130/460 Volt, 1800 RPM, Class 1
Mounted on Legs
