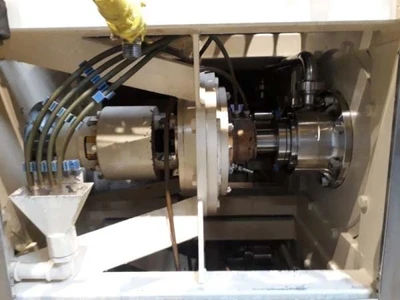

Crystalliser for Margarine

Description

Used crystalliser
Scraped surface heat exchanger for margarine, shortening, or puff pastry
Manufacturer: Schroder
Type MK04/178-1200
Capacity: 3.600-4.800 kg per hour
4 motors: 11 kW, 11 kW, 22 kW, 22 kW
Dimensions: 320 X 185 X 225 cm
Product pressure: 50 bar
4 product cylinders
Tube: Ø 178 mm and length 1.200 mm
Cooling surface per tube 0.67 m²
Rotor: Ø 160 mm with steel knives
Cooling medium: Ammonia, NH3, max pressure: 17 bar, -20/45°C
1 ammonia system including Ammoniac control valve (Danfoss)
Needed cooling energy: ± 215.000 kcal/h at - 10°C evaporation temperature
Including hotwater tank electric heated for seal water, documentation and spare parts manuals
Excluding controls, hotwater pump
