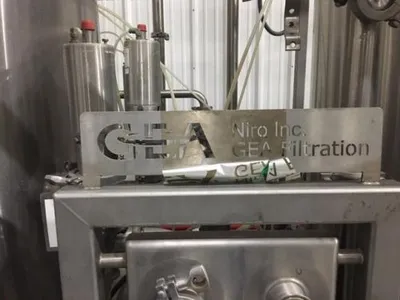

GEA Niro Reverse Osmosis Filtration System

Description

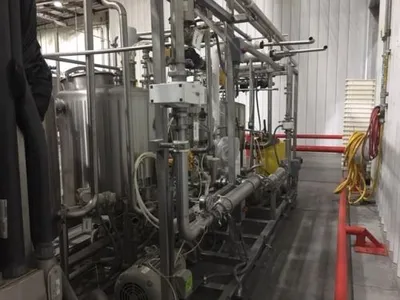

Used/Rebuilt GEA Niro Reverse Osmosis Filtration System
316 stainless steel contacts.
Feed Flow rate: 62.50gpm
Permeate flow rate: 56.25gpm
Concentrate flow rate: 6.25gpm
Includes:
Feed balance tank
Prefilter
25 HP Fristam feed pump
Sunflo P2 100 HP high pressure feed pump

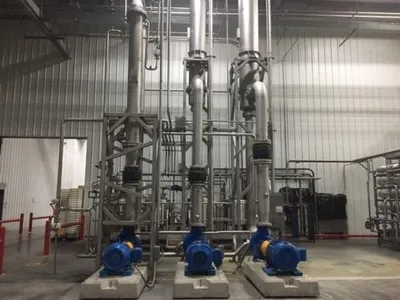

(44) 4-element membrane housings with model 8040 thin-film composite membranes and 13,400 square feet of filtration area

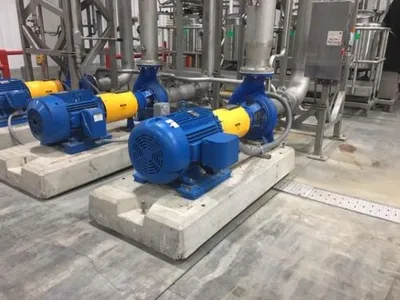

(4) Fristam 25 HP recirculation pumps for constant cross-flow conditions

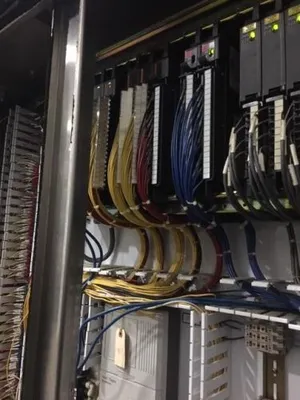

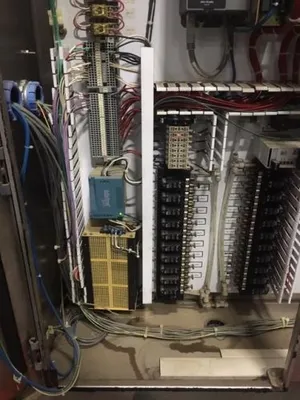

Also includes concentrate section, a permeate section with balance tank and a Fristam 7.5 HP transfer pump, and a complete CIP system with all controls, instrumentation, new inverters, piping, and valving

Originally designed in 2002 for concentrating tomato juice. Transferred in 2007 for dried fruit juices and concentrates. Rebuilt, installed, and never redeployed. Still installed. Details and documentation available.
