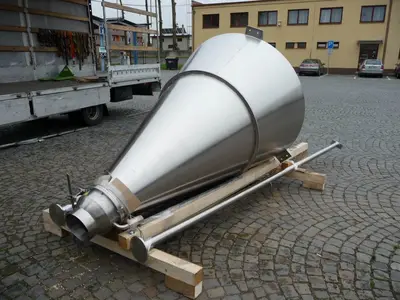

1,000 Litre PERRYmix Model HV 1000 Stainless Steel 316L Conical Mixer, New

Description

New PERRYmix model HV 1000 stainless steel 316l Conical mixer. Effective volume 1000 liter. Cone 1560 mm diameter x 2184 mm height, total height of the machine (bottom edge of the Conical hopper-top edge of EL. Motor cover) 3066 mm. Standard mixing screw diameter 310 mm top driven through Nord gearbox by 3/400V/50 hz/1,5kW EL. Motor and supported by bottom pintle bearing. Screw speed 60 rpm. Stainless steel 304 arm top driven through secondary Nord gearbox by 3/400V/50 hz/0,25kW EL. Motor. Arm speed 2 rpm. Pneumatically operated Rotary slide outlet valve with Conical discharge hopper. Mounted on (3) lugs.
