10.27 Sq. M. One-Way Horizontal Shell and Tube Heat Exchanger LAIP Srl
Have one to sell?
ConditionUsed
1 available

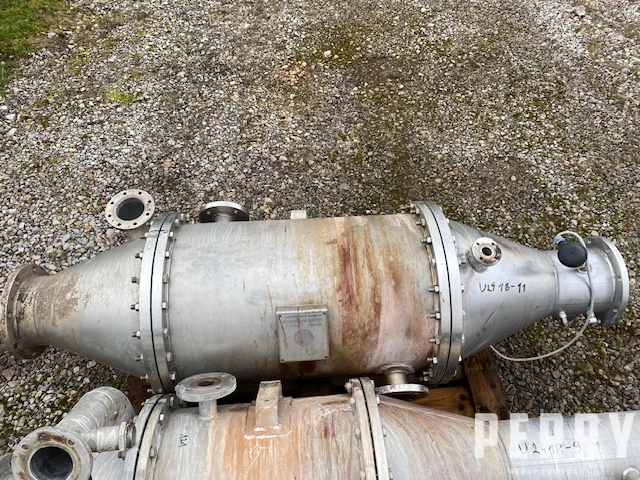

Used approximately 10,27 square meter full stainless steel AISI 316L one-way horizontal shell and tube heat exchanger made by LAIP Srl (Italy). Has (187) approximately 25,2 mm outside diameter (internal diameter 22,1 mm) X 750 mm long stainless steel tubes rated 5 bar pressure at 2 to 158,1 deg. C with total volume 54 litre. Has stainless steel shell approximately 484 mm diameter X 700 mm long rated 15 bar pressure at 2 to 200,4 deg. C with total volume 70 litre. Inside of the shell is mounted 2 baffles.
