Used Stainless Steel Liquid Processing Installation

Description

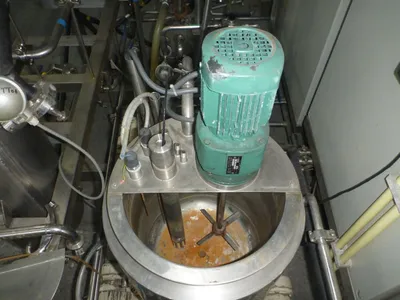

Used stainless steel liquid processing installation, consist of 30 l vertical jacketed mixing tank equipped with propeller type agitator driven el motor 0.12 kW, 1500 rpm, 220/230-380/400V, 50 hz. Tank has internal diameter 345 mm x length of straight side of wall 360 mm. Central bottom discharge outlet. System includes also stainless steel horizontal buffer tank with diameter 430 mm x length of straight side of wall 400 mm, what gives volume 55 l. Buffor tank has three sensors of liquid level and electric heater. For liquid transfer there are mounted two stainless steel contact parts monotype pumps by Neztsch, type 2NL 15A, working rotation up to 214 rpm, each pump is driven by el motor 0.25 kW, 1390 rpm, 220-240/380-420 V, 50 hz. There are also two stainless steel plate heat exchangers by Sondex A/S, model S4-FG. Each heat exchanger has working exchange surface 0.59 m2, power 9 kW, and is designed for work on pressure up to 6 bar, (test pressure 8 bar). Working temperature from 0 up to 110 C. Working liquid flow up to 150 l/h. Product and medium volume - each 8 l. There is also one vertical jacketed stainless steel filtration column. Total volume 10.55 l. All is mounted on stainless steel frame, includes local control panel, piping and valves.
