6.3 M2 Filtration Surface Vacuum Rotary Drum Filter TMCI Padovan

Description

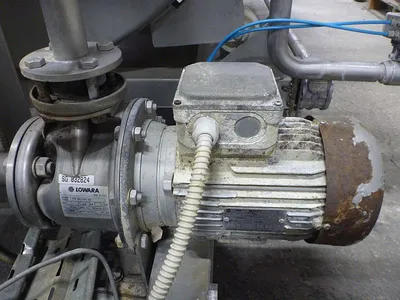

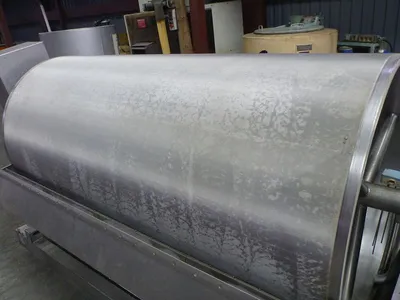

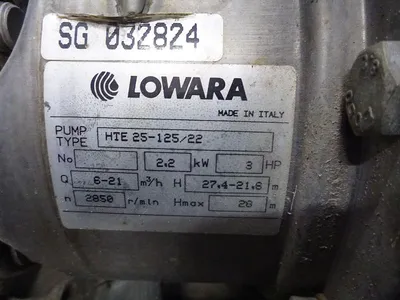

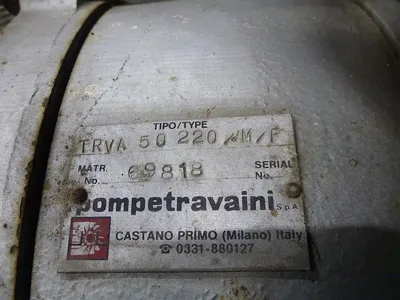

Used stainless steel rotary drum vacuum filter by TMCI Padovan (IT) model Taylo 6MQ. Filtration surface 6.3 m2. Drum has diameter 1010 mm x width 1995 mm and is driven by el. motor 0.75 kW, 1380 rpm, 220/380 V, 50 hz through vari-speed gearbox with adjustable rotation in range from 1 up to 19 rpm. Machine is equipped with vacuum system which consist of: stainless steel vacuum tank with manometer and vacuum pump by Pompetravaini model TRVA 50 220/M/F, driven by el. motor 5.5 kW, 1450 rpm, 220/380 V, 50 hz. Filter has also stainless steel product centrifugal pump Lowara type HTE 25-125/22 driven by el. motor 2.2 kW, 2850 rpm, 220-380V, 50 hz. Pump has output in range from 6-21 m3/h and head range from 21.6 up to 27.4 m. Solids collecting knife position is adjustable together with a product tank up to 42 degrees angle. Machine is mounted on stainless steel supporting frame. Working output depends on product and can reach from 480 up to 3600 l/h. Shipping dimensions: L 405 cm x W 175 cm x H 177 cm x weight approx 2000 kg.
