80 l Vertical Stainless Steel Mixing Tank With Jacket And Electric Heaters

Description

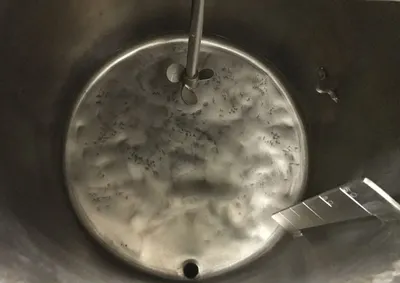

Used vertical mixing tank with total volume 80 l and working volume about 60 l. Tank has internal diameter 495 mm x length of straight side of wall 460 mm. Top bolted with stainless steel cover, which is half open. Tank is equipped with propeler type agitator driven directly by el. motor 0,2 kW, 900 rpm, 220/380 V, 50 hz, Ex design (Ex-d IP45). Discharge outlet at the side wall , with manually operated valve. Tank has carbon steel heating jacket with two electrical heaters and control panel in Ex design. Heating jacket has perforations. Mounted on three carbon steel legs with wheels.
