2.3 kW Molteni Type TM5 RP.SV Twin Shaft Planetary Dissolver

Description

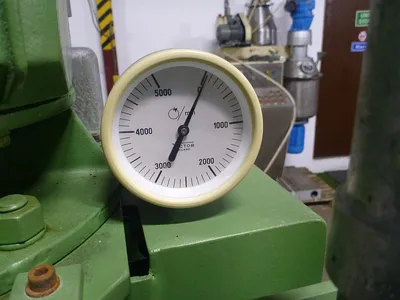

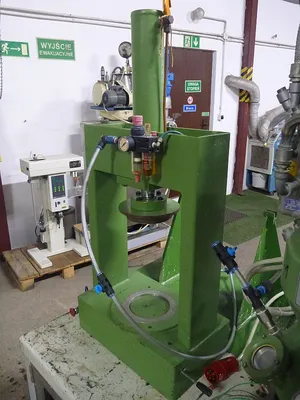

Second hand stainless steel contact parts twin shaft planetary dissolver by Molteni type TM5 RP.SV. Mixer has stainless steel jacketed mixing pan with internal diameter 207 mm x depth 213 mm. Total volume of pan is 7 l, working volume about 5 l. Mixing pan has side wall bottom discharge outlet. Mixer has two agitators with toothed discs and one wall scrapper. Toothed discs have diameter 100 mm and are driven by vari speed gearbox and two speed el. motor 1.75/1.4 kW, 2800/1400 rpm, 380 V, 50 hz, in EEx-d II B T4. Working rotation of disc agitators manually adjustable in range from 300 up to 4800 rpm. Wall scrapper is driven by el motor 0.26 kW, 1360 rpm, 220/380 V, 50 hz (design EEx-d II B T5) through reducer with ratio i= 44.77, what gives output rotation at 32 rpm. Agitators are risen by hydraulical device driven by el. motor 0.26 kW, 1360 rpm, 220/380 V, 50 hz, EEx-d II B T5 design. Machine is equipped with local control panel and pneumatic vacuum pump by Piab. Machine is mounted on steel mobile cabinet. Additional equipment included with mixer: pneumatically operated press for emptying mixing pan, stand for emptying/cleaning mixing pan.
