130 Litre Lödige Model FM130D/1MZ Stainless Steel Ploughshare Mixer

Description

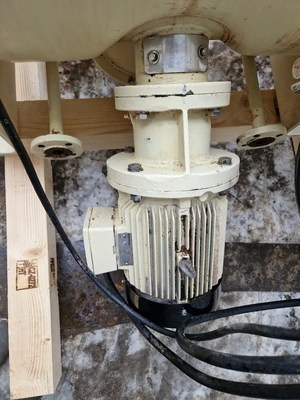

Used Lödige model FM 130D/1MZ stainless steel ploughshare mixer. Has 130 litre total capacity and approx. 35-90 litre working capacity. Stainless steel jacketed mixing chamber has diameter approximately 490 mm x 655 mm long, has (1) top feeding/inspection hatche 520 mm x 310 mm, also has (1) top inlet with diameter 200 mm. Carbon steel jacket rated 5 bar pressure at 150°C. Bolted plougshare mixing blades belt driven by 5.5 kW, 50 Hz, 380 V, 965 rpm. Standard rope type of sealing on horizontal shaft. Has (1) chopper directly driven by 4 kW, 50 Hz, 380 V, 2895 RPMs el. motor. Has rectangular 120 mm x 160 mm central bottom outlet with manually operated clack valve. Includes control panel.
