102.6 Sq. Meter SGL Carbon Technic Sas Graphite Block Heat Exchanger-Condenser

Description

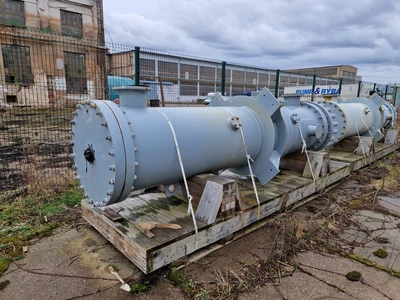

Used SGL Carbon Technic Sas (France) model CKL7 diam.16 - 10 blocks, graphite (DIABON NS1) heat exchanger/cooler-condenser with surface area 102,6 sq. meters. Has 10 graphite blocks, each diameter 765 mm x 347 mm height. Construction material of shell P265GH (W.Nr. 1.0425). Process side rated full vacuum/3bar at 1 to 110 deg.C. Design pressure -1/3Bar at 1 to 110 deg.c. Service side rated 5 bar design pressure at 1 to 40 deg.C. Process side capacity 542 litre and service side capacity 648 litre. Product inlet diameter: 450 mm and 100 mm outlet. Dimensions: 1000 mm diameter x 4520 mm height. Mounted on (3) lugs. New 2010.
Transport dimensions: 4700 mm lenght x 1 450mm width - 1700 hight.
Transport weight: 5 600 kg, (only exchanger 4950 kg).
