New 197.4 sqmt 316 Stainless Steel Vertical Shell and Tube Heat Exchanger

Description

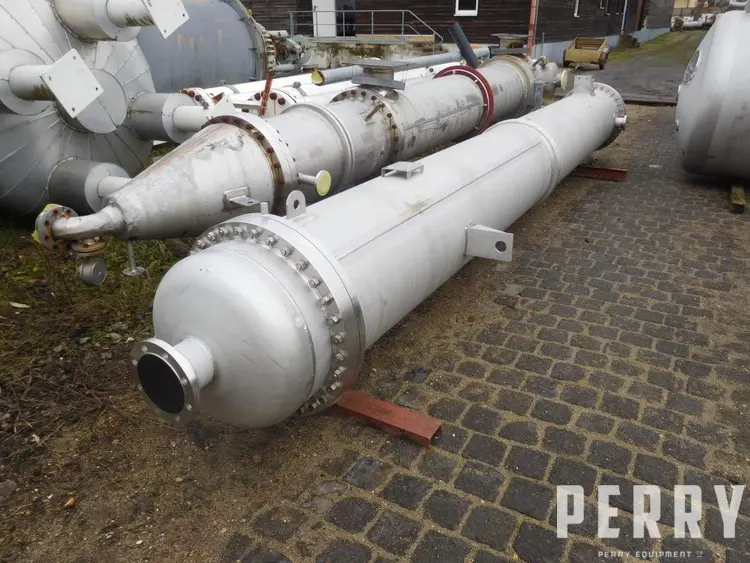

New Timmermann model RVS680-Vo197.4-L6000/2pp+c approximately 197.4sqmt 316 Stainless Steel Vertical Shell and Tube Heat Exchanger. Unit has (499) 316 stainless steel tubes which measure approximately 21.3mm diameter x 6000mm long, capacity 1010 litres, rated 16 bar at 100 Deg C. Tube thickness is 1.6mm. 316 Stainless Steel shell measures approximately 680mm x 7080mm, capacity 980 litres rated 12 bar at 100 DegC. Unit has (2) 316L (1.4404) stainless steel heads, single pass expansion bellows. Nozzle Schedule: openings tube side: (1) head with 150mm, (1) head with 150mm, shell: 2-150mm, Heat exchanger is CE marked.
