Desalination Unit

Description

Used desalination unit to include the following:

(1) Permascand titanium vertical agitated tank
20 cubic meter capacity
4 bar
143°C
2.5m diameter X 3.4m straight side
(3) 2-blade pitched paddles
Driven by 11 kW 3/50/380/400/680, 440 rpm
Baffles on sidewall
Mounted on support frame
Type 20-104-003
S/N 0417

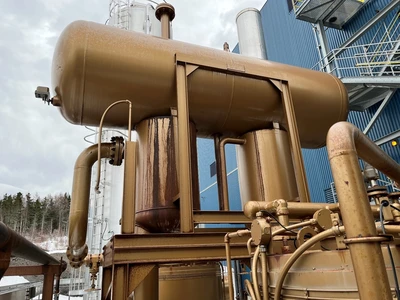

(1) Deaerator
Model FT-3000L
750 gallon cold-seal expansion tank
ASME code stamped for 50 psi

(2) Fulton fuel-fired vertical coil design thermal fluid heater
Model FT-0800C
Flow rate 500 GPM; 1000 GPM total
Propane fired
Modulated buerner with CSA standards
Rated 8,000,000 Btu/hour net output each
Maximum input: 9,997,000 Btu/hour
650°F maximum
150 psi maximum
575/3/60
S/N 6595C; NB 7843
S/N 6594C; NB 7835
CRN H3030.56

(3) Dean pumps
Designed for 650°F
500 gpm @ 60 psi
40 HP @ 3500 rpm TEFC motor
575/3/60

Cooling tower model TTGE-101975
