Used stainless steel contact parts mixing tank with total volume 220 l. Carbon steel jacket.

Description

Used stainless steel contact parts mixing tank with total volume 220 l. Tank has internal diameter 630 mm x depth 700 mm. Top covers bolted, equipped with two agitators:
- 3-blade paddle agitator, driven by gearbox and el. motor with power approx 1.5 kW
- propeller agitator driven directly by electric motor 0.37 kW, 1350 rpm, 220/380 V, 50 hz.
There is also welded static agitator welded to wall of tank. Tank has also temperature sensor mounted at top cover. Mixing chamber is layered with carbon steel jacket, equipped with electric heater.

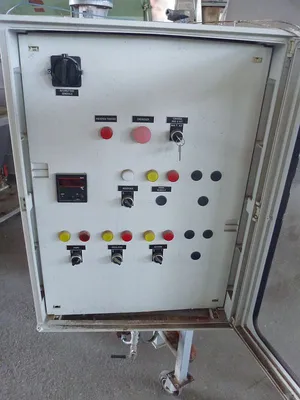

Discharge outlet at the flat bottom, close to side wall. Tank is equipped with circulation pump and local control panel. Machine is mounted on carbon steel mobile frame. Shipping dimensions: L 130 cm x W 70 cm x H 180 cm.
