20,000 Bottles/Hour Sacmi Form and Filling Line

Description

Used PET blow mould and filling line with capacity 20,000 bottles/hour. Line includes the following major equipment:

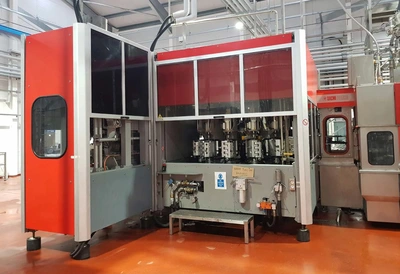

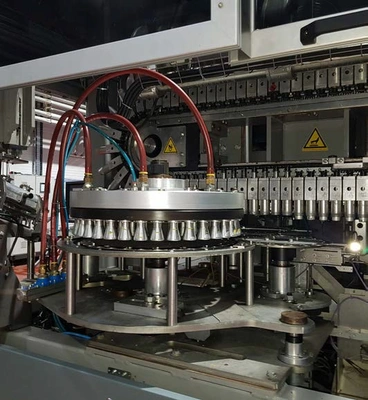

- SACMI SR12 COMBO 12-40-10 blower / filler / capper. Preform tipper & hopper (Made in 2008, refurbished 2018). 12-head blow moulder, 184 preform magazine, 2 sets of change parts 250ml & 330ml. 40-head volumetric flow filler 28mm to 38mm neck, refurbished neck grippers. 10 head Arol capper, hopper elevator, 3 cap sorter feed hoppers for size 28mm, 35mm, 38mm caps.
- Barry Wehmiller VOLUMIX DUO 2 /3 /12, automated drinks mixer, 20,000 litre per hour capacity (2017). Lanxess Velcorin DT 13 S, max dosing rate 20ml/100l, beverage flow 2400-14400 l/h (2012). Heuft Spectrum cap & fill level inspection. Barry Wehmiller VOLUCLEAN CIP, automatic skid mounted system.
- Fuji Seal air dryer knife (2017). Fuji Seal 415X EU sleeve applicator, with inspection & reject station, automatic splice unit, 3 reel feeder. Fuji Seal ST-M shrink tunnel.
- Sacmi Opera 200 RF automatic roll fed rotary labeller, change parts 250ml, 330ml, 500ml, (2008). SMI SK450 P shrink wrapper printed and blank film, with 22 option format selection. SMI heated shrink wrap tunnel, 45 packs per minute capacity. Loma metal detector. Altech case labeller.
- Hartness bottle accumulator, bottle inverter. Pentair 3 tank carbon water filtration plant with pall filters. Innowatech Hyclean mixing & dosing station with bottle steriliser system. 110m of Bottle, pack and tray conveyor, upgraded 2018. Emmeti Logik Wolf palletiser system. Robopac Helix HS30 pallet wrapper.
- Compressors and chillers. AF CE46B 40 bar high pressure compressor, YOM 2003 refurbished by AF in 2019. Hankison compressed air dryer for PET 40 bar pressure. ASKI LCA/E type 1102 PET M chiller (2008). ICS AT/K P2080 chiller (2017).
