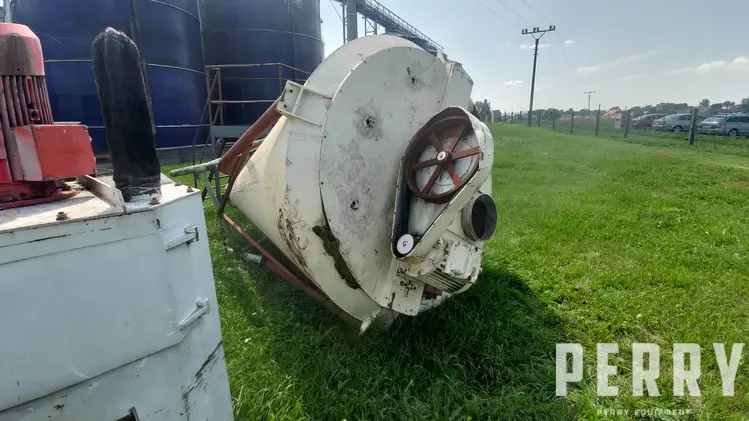

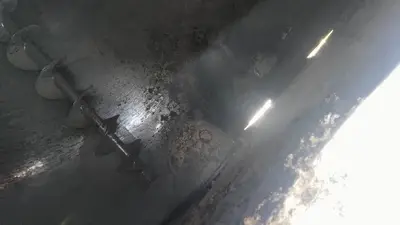

Used pharmix type HV 3000 (Czech republic) stainless steel conical "Nauta" type mixer. Cone 2180 mm diameter x 3200 mm straight side with 3000 litre effective volume (vessel total volume 4 875 l). Total height 4125 mm. Mixing screw diameter 350 mm top driven by 3/400v/50hz/5,5kw motor and supported by bottom pintle bearing. Screw speed 60 rpm. Arm speed 2 rpm. Manual rotary slide outlet valve with hopper. Mounted on (4) lugs.
